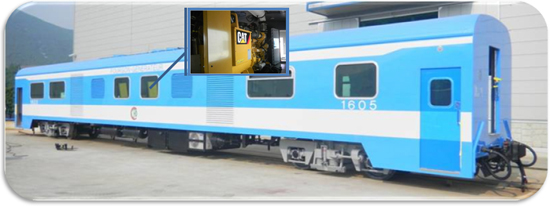

Power generating Car
| No. |
Description |
Specification |
| 1 |
Max. Operating speed |
120km/h |
| 2 |
Overall Length |
22,800mm |
| 3 |
Track gauge |
1676/1435 /1067mm |
| 4 |
Tare weight |
About 40 ton |
| 5 |
Max. Load |
18 ton |
| 6 |
Width |
2,825mm |
| 7 |
Height of car-body |
3,815 mm |
| 8 |
Wheel diameter |
Ø 860 mm |
| 9 |
Height of Coupler |
870 mm ±5 |
| 10 |
Power Generation |
Engine : 504HP/1,500rpm
Generator : 400KVA
|

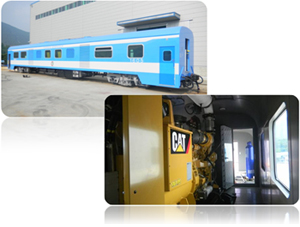

1. Engine
- Engine : Caterpillar diesel engine
- Capacity : 510 HP 1500 RPM
- Quantity : 2 engines
2. Generator
- Capacity : 400 KVA (50Hz)
3. Generator set
- Quantity : 2 engines
- Dimensions (L x P x H) : 3.800 x 1.105 x 2.092
- Weight : 3,427 kg
4. Cooling device : Roof mounting type
 |
 |
