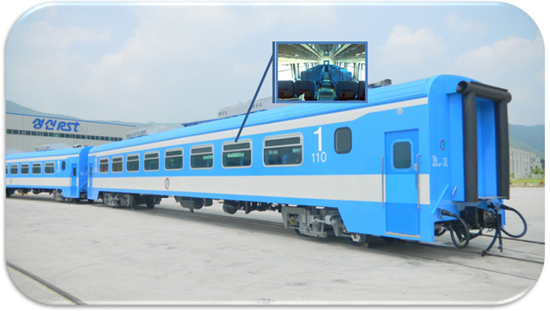

Passenger 1st and 2nd Coach
Passenger 1st Class Coach
| No. |
Description |
Specification |
| 1 |
Max. Operating speed |
120km/h |
| 2 |
Overall Length |
22,800mm |
| 3 |
Track gauge |
1676/1435 /1067mm |
| 4 |
Tare weight |
About 40 ton |
| 5 |
Max. load |
22 ton |
| 6 |
Width |
2,825mm |
| 7 |
Height of car-body |
4,315 mm |
| 8 |
Wheel diameter |
Ø 860 mm |
| 9 |
Height of Coupler |
870 mm ±5 |
| 10 |
Passenger Seat |
68/51 Seats |
Passenger 2nd Class Coach
| No. |
Description |
Specification |
| 1 |
Max. Operating speed |
120km/h |
| 2 |
Overall Length |
22,800mm |
| 3 |
Track gauge |
1676/1435 /1067mm |
| 4 |
Tare weight |
About 40 ton |
| 5 |
Max. load |
25.6 ton |
| 6 |
Width |
2,825mm |
| 7 |
Height of car-body |
4,315 mm |
| 8 |
Wheel diameter |
Ø 860 mm |
| 9 |
Height of Coupler |
870 mm ±5 |
| 10 |
Passenger Seat |
80 seats |
1. General Specifications
- Maximum operating speed: 120 km/h
- Overall Length (body): 22.800 mm
- Track gauge: 1.067 / 1.435 / 1.676 mm
- Tare Weight: Approximately 40 tons
- Length between truck pivot centers: 15.885 mm
- Body Width: 2.825 mm
- Body height: 4.315 mm
- Wheel base: 2.300 mm
- Wheel diameter: Ø 860 mm
- Air Conditioning
- Cooling capacity: 40,000 Kcal/h
- Refrigerant: R-134a
- Alimentation: Three-phase, 380V AC
- Control method: Micom
2. Interior Equipements
- Seat Passenger
- Quantity: 68 seats (1st)/80 seats (2nd)
- Type: double tilt
- Tilt angle of the seat back: About 16 ˚ ~ 25 ˚
- Material of armrest: Plastic
- Material of Footrest: Steel
- Accessories: folding armrests, foot pad,
Footrest (1st), cup holders, luggage nets
- Cover: polyester flame retardant carpet
 |
 |
